Each spec value indicates a design value by manufacturer.
Each spec value of units are SI units as the international system of units.
[ ] indicates the conventional units are listed together.

Road Planers

Hanta Road Planer Series are born in site experiences and adaptable to various cutting jobs!!

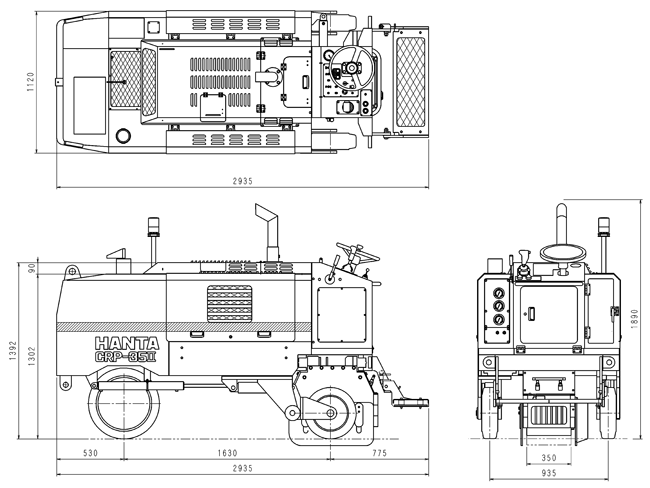

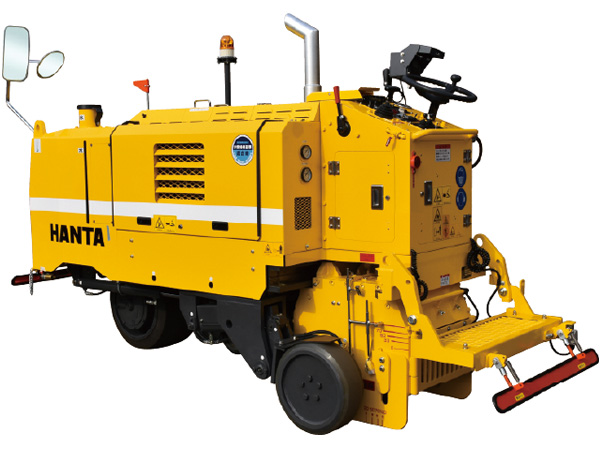

CRP-35 II 3WD/CRP-50II

A high performance in sharp L.H & R.H turn cut,
adaptable to round and other different profile cuttings!!

* Small turn 3-wheels

Model	CRP-35II3WD/CRP-50II
Max. cutting width	500mm
Max. cutting depth	100mm
Weight	3,850kg
Working Speed	0～11.0m/min
Engine	66.7kW/2,400min^-1[90.6ps/2,400r.p.m.]
Drive System	Wheel type (3WD)
Overall Length	3,250（L）×1,170（W）×1,870（H）mm

pagetop

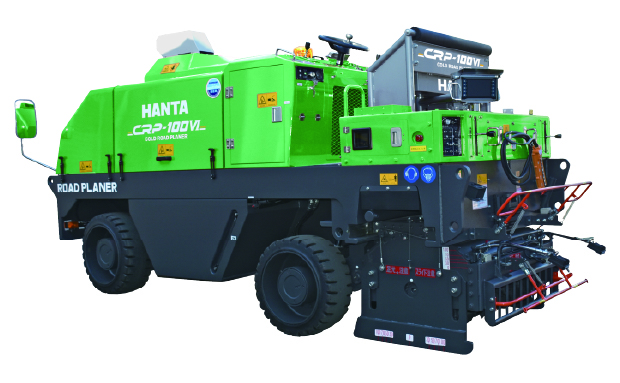

CRP-100VI

An excellent cutting performance not only for a supplement of large planers but also a single unit cutting, and it makes cutting started just from the rear edge.

* 4-wheel drive
* Rear Cut Drum

Model	CRP-100VI
Max. cutting width	1,000mm
Max. cutting depth	100mm
Weight	8,140kg
Working Speed	0～12.5m/min
Engine	95.0kW/2,400min^-1[129.2ps/2,400r.p.m]
Drive system	Wheel type (4WD)
Overall Length	4,180（L）×1,620（W）×2,200（H）mm

pagetop

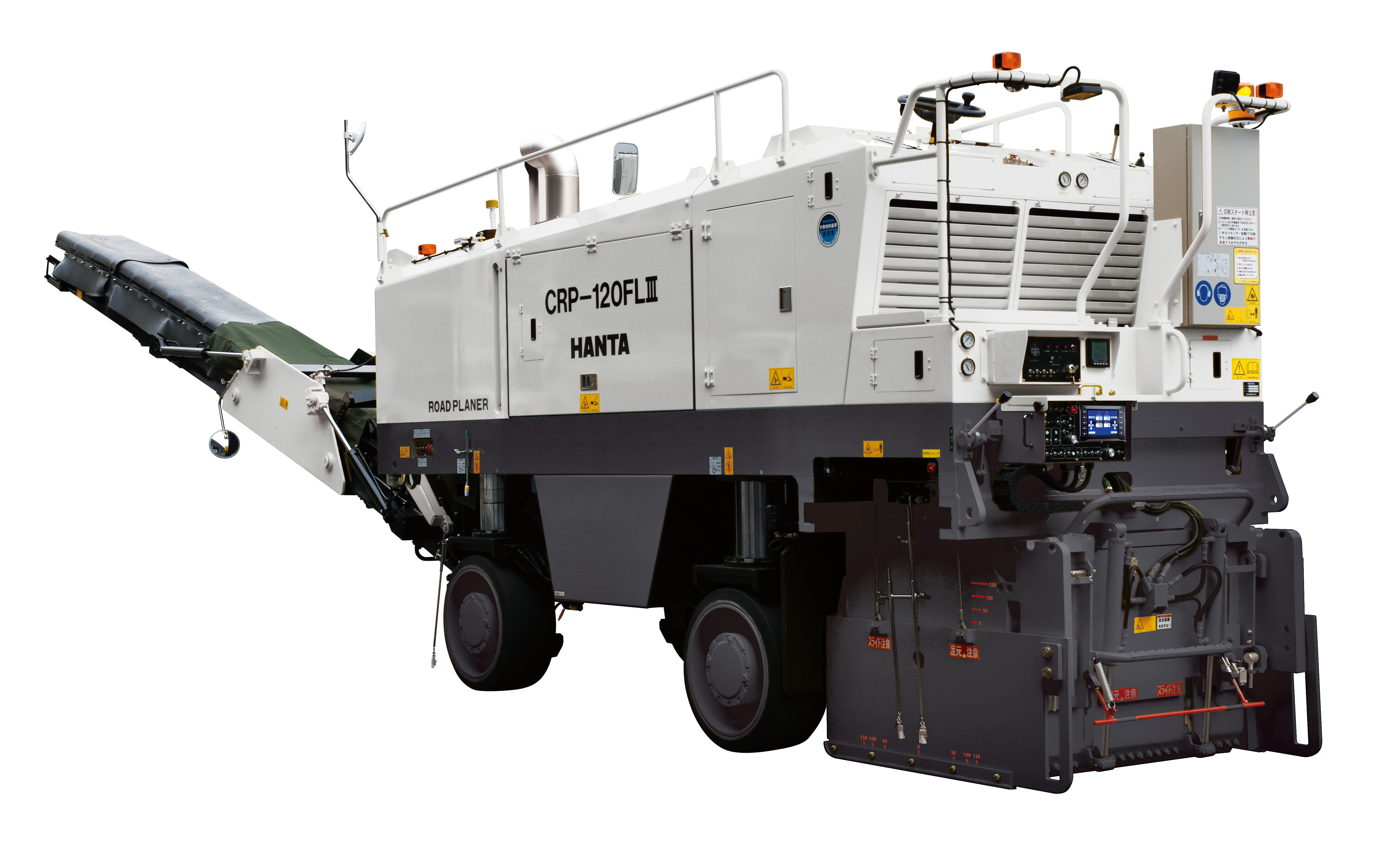

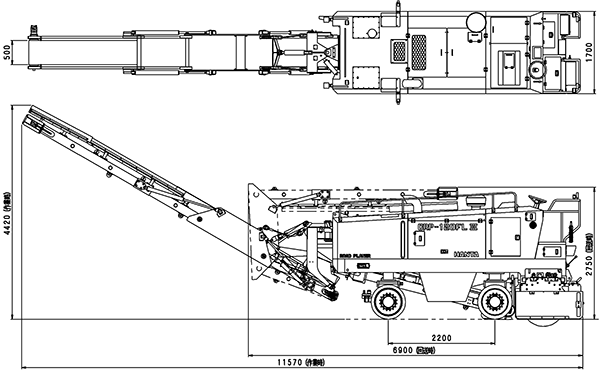

CRP-120FL III

High efficiency mini planer version with loader!!

* Rear Cut Drum
* with Front Loader

Model	CRP-120FLIII
Max. cutting width	1,200mm
Max. cutting depth	150mm
Weight	17,600kg
Working Speed	0～29m/min
Engine	257kW/2,100min^-1[349.4ps/2,100r.p.m.]
Drive system	Wheel type (4WD)
Overall Length	11,640（L）×1,700（W）×4,420（H）mm

pagetop

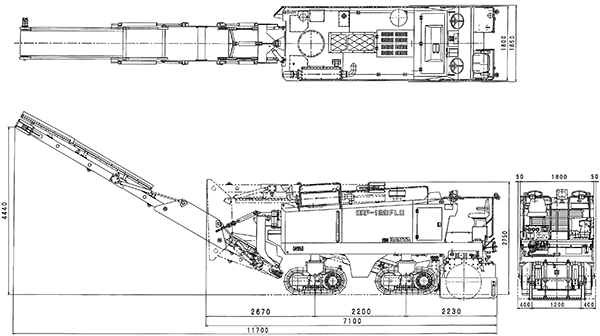

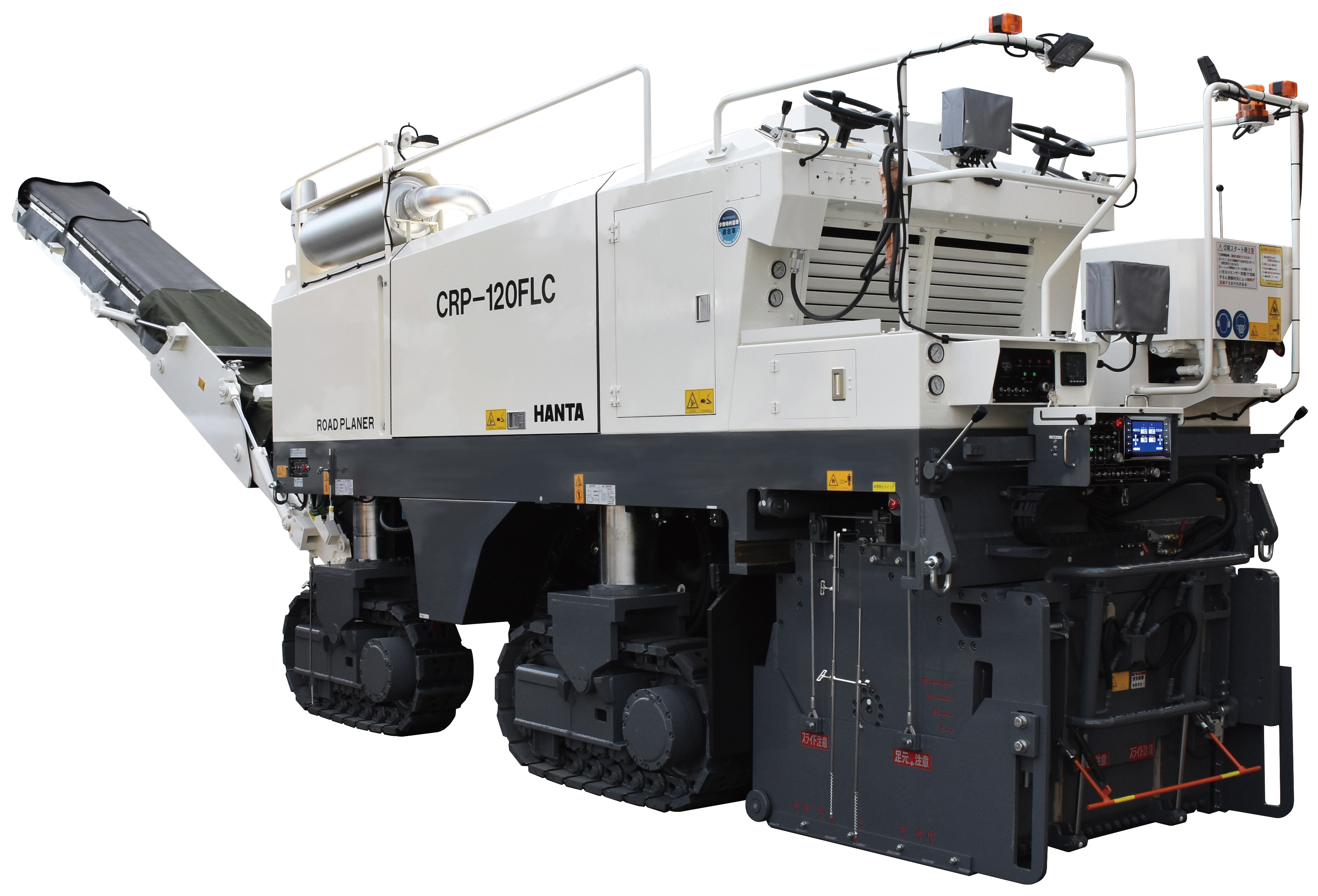

CRP-120FLC

High efficiency mini planer version with loader!!

* Rear Cut Drum
* with Front Loader
* Crawler type & four wheel drive

Model	CRP-120FLC
Max. cutting width	1,200mm
Max. cutting depth	150mm
Weight	18,450kg
Working Speed	0～19.5m/min
Engine	257kW/2,100min^-1[349.4ps/2,100r.p.m.]
Drive system	Clawller type (4WD)
Overall Length	11,700（L）×1,850（W）×4,440（H）mm
