Each spec value indicates a design value by manufacturer.
Each spec value of units are SI units as the international system of units.
[ ] indicates the conventional units are listed together.

Asphalt Distributors

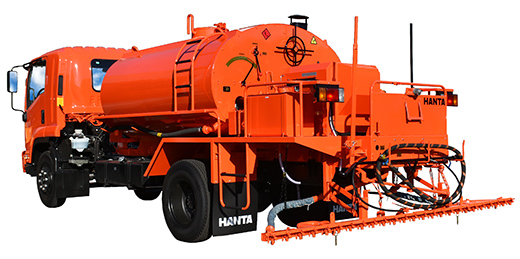

Asphalt Distributors: DS-DDT(S)

Asphalt Distributors: DS-DDT(S)

    In this type, Body with Sub-engine Driven System is mounted on a Truck Chassis. Max. 3.6 m of Spray Bar and Spray Capacity, etc. are available on your request.

Main Technical Data
Model Designation  DS-DDT(S)
Power Unit 4cycle, water-cooled diesel engine
Output : 19.0 PS / 2,300 rpm
Asphalt Pump Gear rotary type
Spraying capacity : 350 L/min
Asphalt Tank 2,000, 4,000, 6,000, 8,000, or 10,000 L
Length and Spray Width Length : max. 3,660 mm
Spray width : max. 3,750 mm
Control Position Driver's cabin or rear platform
