Each spec value indicates a design value by manufacturer.
Each spec value of units are SI units as the international system of units.
[ ] indicates the conventional units are listed together.

Asphalt Paver

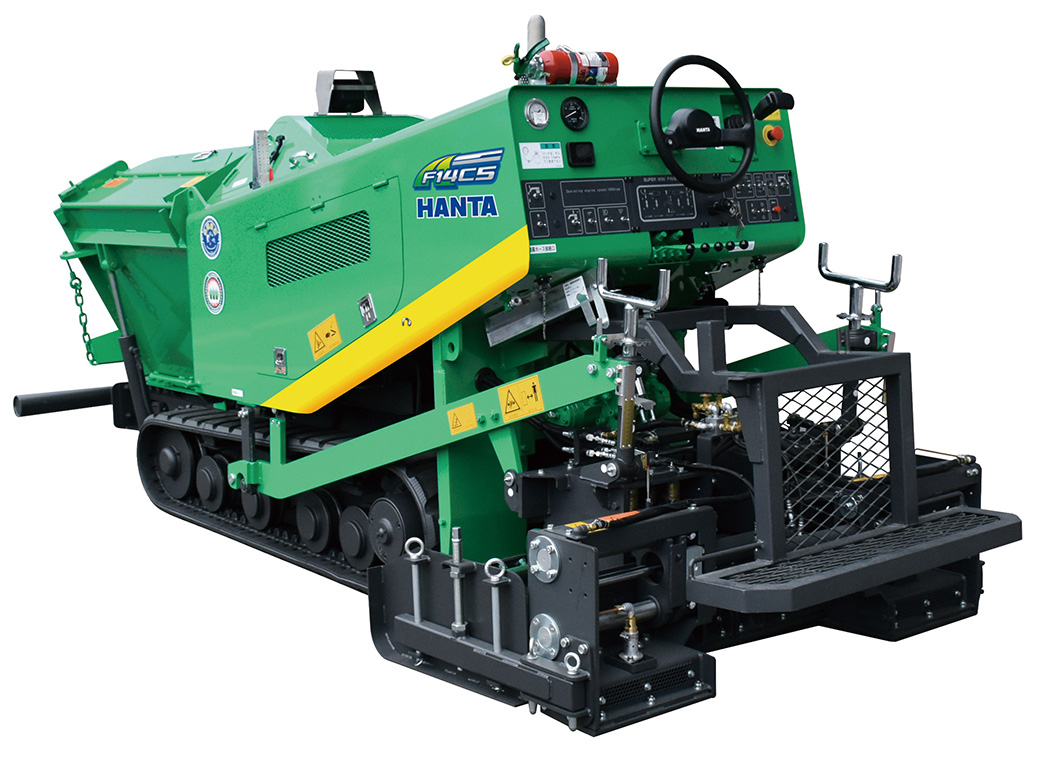

Crawler Type Mini Asphalt Paver： Model F14C5
Crawler Type Mini Asphalt Paver: F14C5&18C3
OUTLINE

F14C5 has developed for the narrow andconfined paving works, and is world smallest ultra mini paver having provided with the all functions of standard paver without any compromise, and that has proven their dynamic performance as axially pavers in even the German Autobahn repair works.

Main Technical Data

Type  F14C5
Weight 2,850kg
Paving Width 0.8～1.4m
Dimensions（L×W×H）annotation1 Overall length(Working) : 3,910（L）×1,300（W）×1,735（H）mm
Overall length(Transporting) : 3,910（L）×1,300（W）×1,735（H）mm
Laying Thickness 10～80mm
Laying Speed 1～5m/min
Engine 18.2kW/2,200min-1

annotation1 : Length including step and guide-roller

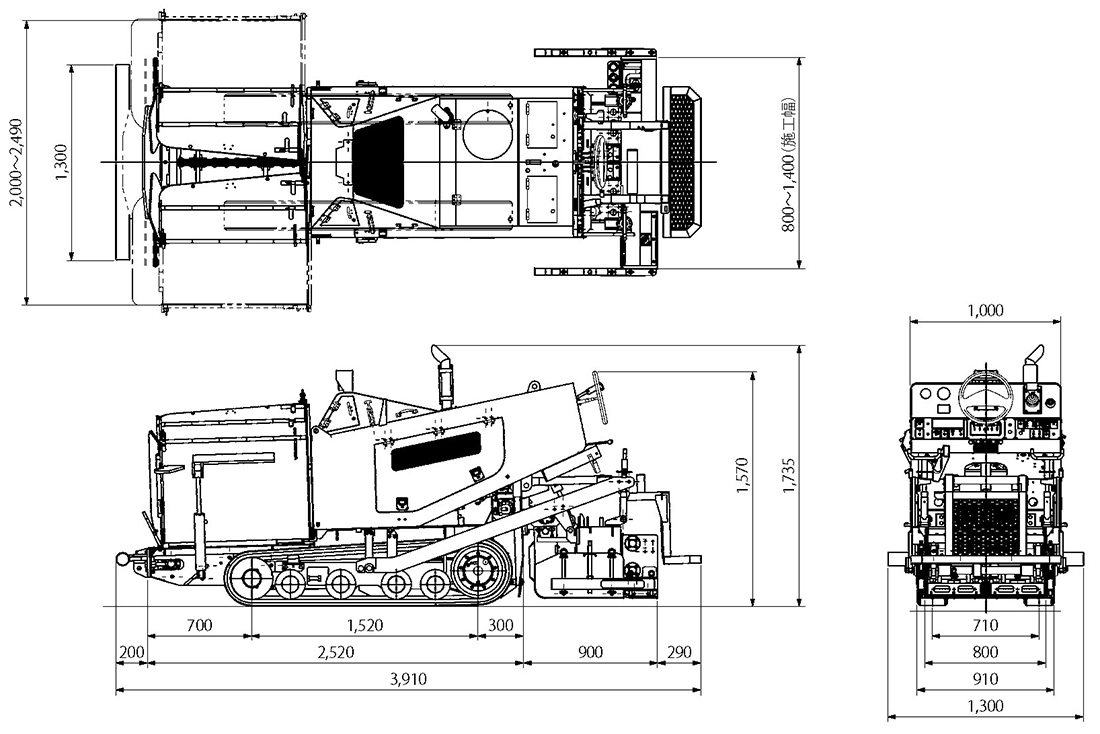

Dimensions
Crawler Type Mini Asphalt Paver: F14C5&18C3

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Designated Exhaust Gas Controlled Construction Machine in Second Phase STD. registered to Ministry of Land Infrastructure & Transport.
