Asphalt Paver

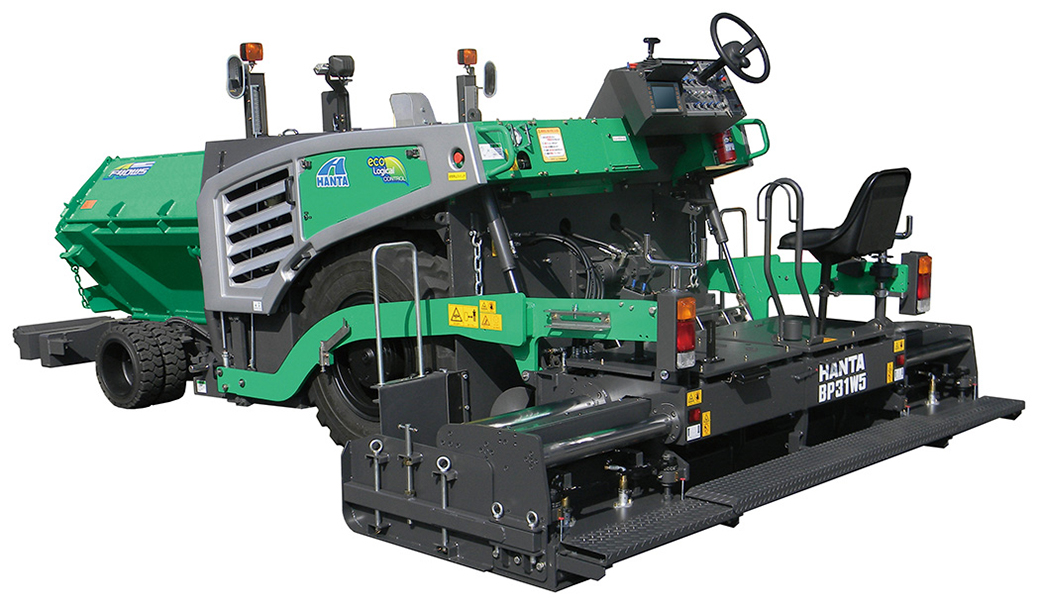

Wheel Type Mini Asphalt Paver： BP31W5
Wheels Type Mini Asphalt Paver: BP31W5
OUTLINE

Equipped with RV screed with result and trust!!
Also equipping with eco-mode, color display and supervisory camera for hopper inside, etc., those are more enriched for environmental performance and operability.

Main Technical Data

Type  BP31W5
Weight 6,220kg
Paving Width 1.7～3.1m
Dimensions（L×W×H） Overall length(Working) : 5,100（L）×1,940（W）×1,965（H）mm
Overall length(Transporting) : 5,085（L）×1,940（W）×1,940（H）mm
Laying Thickness 10～150mm
Laying Speed 4WD:1～11m/min
Engine 39.0kW/2,200min-1

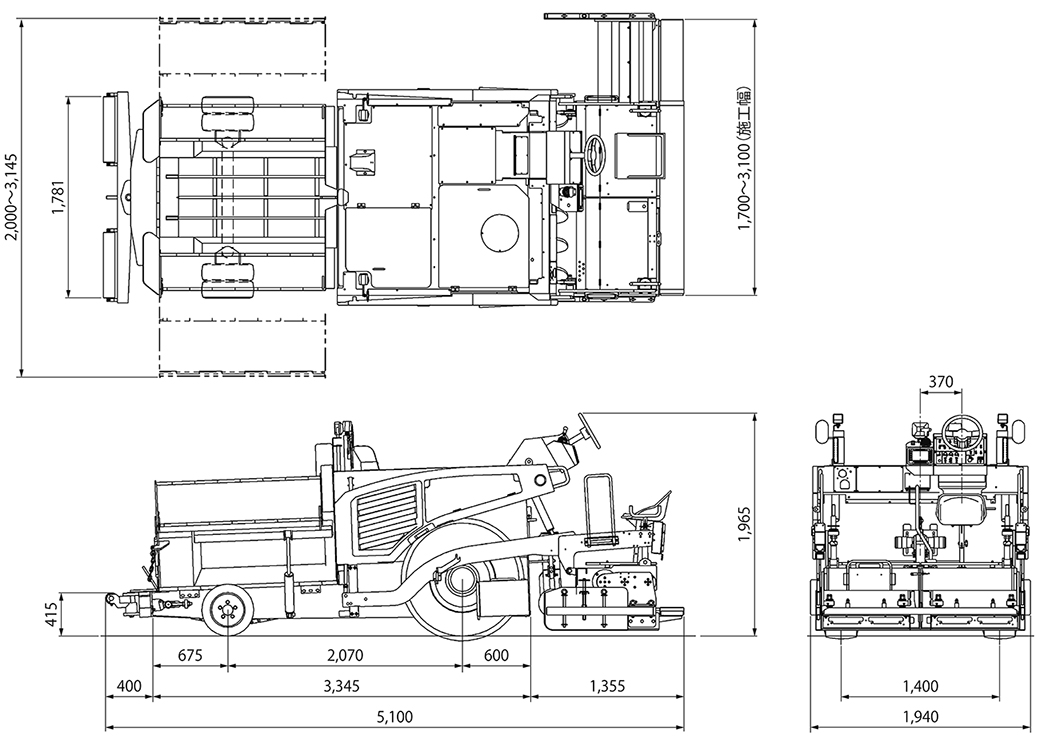

Dimensions
Wheels Type Mini Asphalt Paver: BP31W5

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Complied with diesel emission gas regulation in 2014 for non-road special motor vehicle.
