Wheel Type Mini Asphalt Paver: Model F1741W3 |
![Wheels Type Mini Asphalt Paver: Model F1741W3](img/main_f1741w3.jpg) |
![](../../../common/images/spacer.gif) |
|
![Main Technical Data](../../images/product-subt_00.gif) |
|
|
![Main Technical Data](../../images/product-subt_01.gif) |
|
![](../../../common/images/spacer.gif) |
Model Designation |
F1741W3 |
Weight |
Approx. 7,180kg |
Paving Width |
1.75~4.1m |
Dimension(L×W×H) |
5,355(L)×1,940(W)×2,005(H)mm |
Paving Thickness |
10~150mm |
Paving Speed |
4WD:1~8.5m/min |
Rated Output |
36.0kW/1,900min-1 |
|
|
![](../../../common/images/spacer.gif) |
|
|

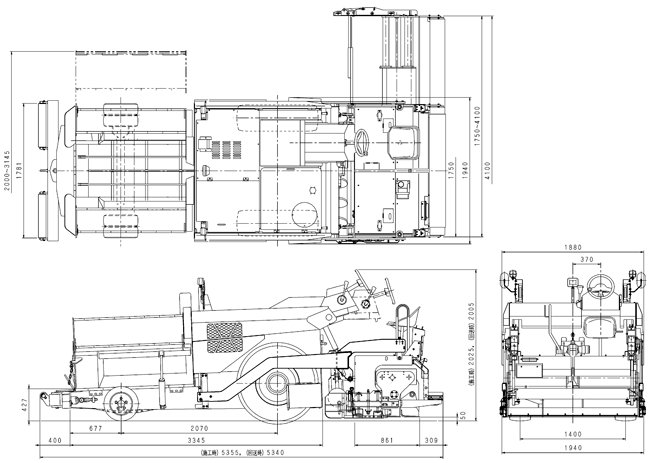

![Dimensions](../../images/product-subt_02.gif) |
![](../../../common/images/spacer.gif) |
|
|
![](../images/main_rogo01.jpg) |
Designated Low Noise Level Construction Machine registered
to Ministry of Land Infrastructure &
Transport. (97’Version) |
![](../images/main_rogo03.jpg) |
Conformity vehicle for exhaust gas control standard to designated special vehicles. |
|
