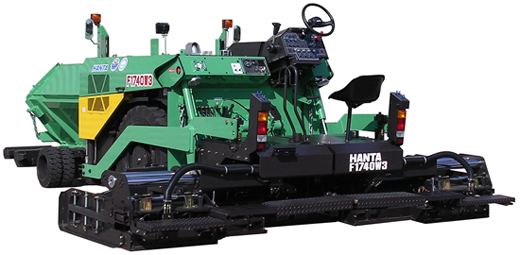

	Asphalt Paver Wheel Type Mini Asphalt Paver： F1740W3

Model Designation	F1740W3
Weight	Approx 7,180kg
Paving Width	1.75～4.0m

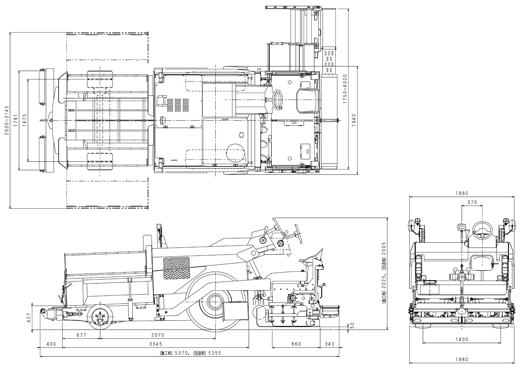

Dimension（L×W×H）	5,.355（L）×1,940（W）×2,005（H）mm
Paving Thickness	10～150mm
Paving Speed	4WD:1～12m/min
Rated Output	36.0kW/1,900min^-1

Wheels Type Mini Asphalt Paver: F1740W3

	Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport(‘97’Version)
	Conformity vehicle for exhaust gas control standard to designated special vehicles.
