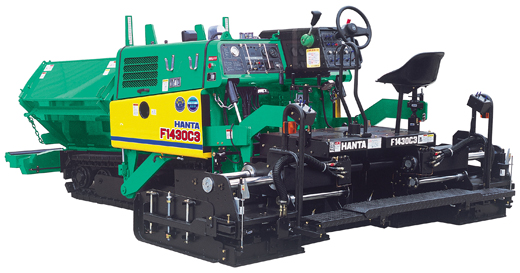

	Asphalt Paver Crawler Type Mini Asphalt Paver： Model F1430C3


	It adopts a new rear variable 3-satge extension screed exhibiting outstanding performance in uniform and stable mat density finishes on full paving widths and layer thicknesses. It provides a prompt and effective paving width change from 1.4m to 3.0m instantly by finger tip control in busy city streets, and parallel supporting rods for the screed displays a high stretching stability.

Model Designation	F1430C3
Weight	Approx 5,200kg
Paving Width	1.4～3.0m

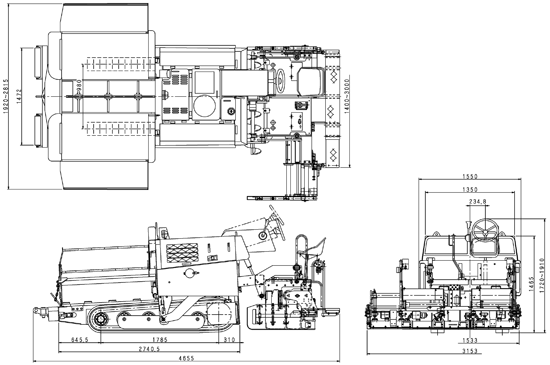

Dimension（L×W×H）	4.655（L）×1,550（W）×1,720（H）mm
Paving Thickness	10～150mm
Paving Speed	1～12m/min
Rated Output	25.3kW/1,900min^-1[34.4ps/1,900r.p.m]

Crawler Type Mini Asphalt Paver: F1430C

	Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport(‘97’Version)
	Conformity vehicle for exhaust gas control standard to designated special vehicles.
