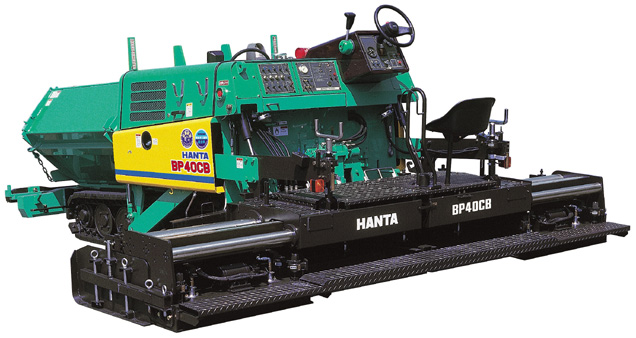

Crawler Type Mini Asphalt Paver： Model BP40CB

Crawler Type Mini Asphalt Paver: BP40C


	Adapted a new engine conforms to Phase Ⅲ Exhaust Gas Control. Mounted the swing type console panel for further maneuverability and operational safety. Adopted two-lane independent control material feeders lanes similar to the large pavers. Secures stable high quality mat finish irrespective to frequent changing laying thickness and paving width.

Model Designation	BP40CB
Weight	Approx.6,280kg
Paving Width	2.3～4.0ｍ

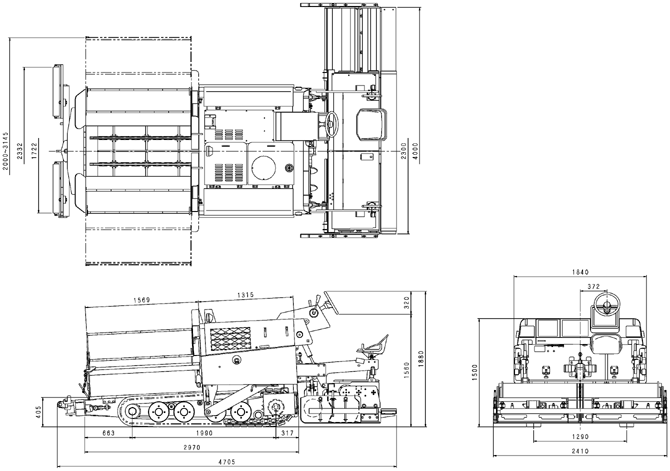

Dimension（L×W×H）	4,705×2,410×1,880mm
Paving Thickness	10～150mm
Paving Speed	1～12m/min
Rated Output	36.0kW/1,900min^-1[48.9ps/1,900r.p.m]

Crawler Type Mini Asphalt Paver: BP31C58&BP40C

	Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport(‘97’Version)
	Conformity vehicle for exhaust gas control standard to designated special vehicles.
