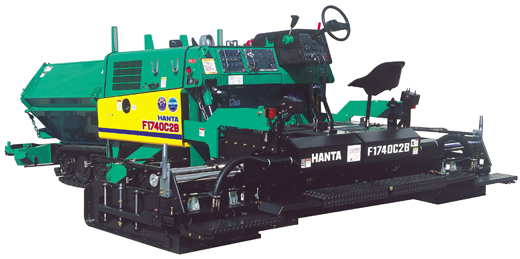

Crawler Type Mini Asphalt Paver: Model F1740C2B

Crawler Type Mini Asphalt Paver: F1740C2
Main Technical Data

It adopts a new rear variable 3-satge extension screed exhibiting outstanding performance in uniform and stable mat density finishes on full paving widths and layer thicknesses. It provides a prompt and effective paving width change from 1.75m to 4.0m instantly by finger tip control in busy city streets, and parallel supporting rods for the screed displays a high stretching stability.

Main Technical Data

Model Designation  F1740C2B
Weight Approx 6,580kg
Paving Width 1.75~4.0m
Dimension(L×W×H) 4.980(L)×1,880(W)×1,880(H)mm
Paving Thickness 10~150mm
Paving Speed 1~12m/min
Rated Output 36.0kW/1,900min-1[48.9ps/1,900r.p.m]

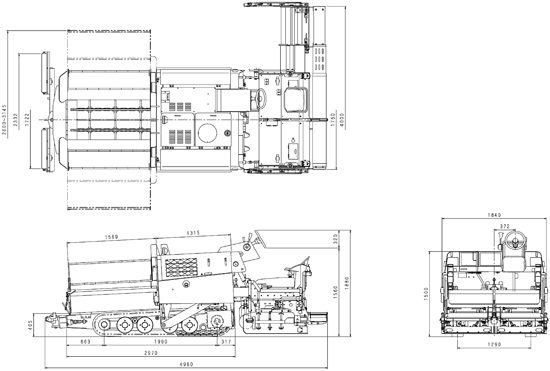

Dimensions
Crawler Type Mini Asphalt Paver: F1740C2

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport(‘97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
