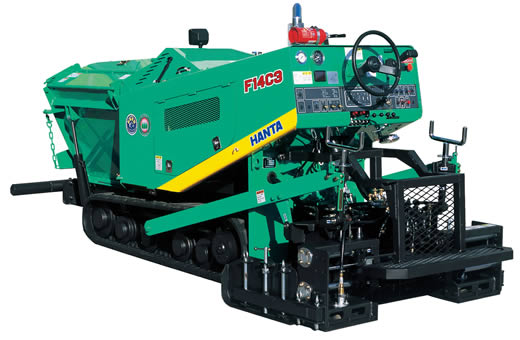

Crawler Type Mini Asphalt Paver： Model F14C3 & F18C3

Crawler Type Mini Asphalt Paver: F14C3&18C3


	Making the best use of voices from the worksites, F14C3 & 18C3 have been developed for the narrow and confined paving works. The application fields for F14C3 & F18C3 are countless in the modern city streets pavement repair and maintenance. Sewage and utility trench renovations, pedestrian path paving, rut patch and fill, and bicycle road are, among others, their major unrivaled working areas of one-man show. F14C3 & F18C3 are world smallest ultra mini pavers having provided with the all functions of standard paver without any compromise, and that have proven their dynamic performance as axially pavers in even the German Autobahn repair works.

Model Designation	F14C3	F18C3
Weight	Approx.2,850kg	Approx.2,950kg
Paving Width	0.8～1.4m	1.1～1.8m

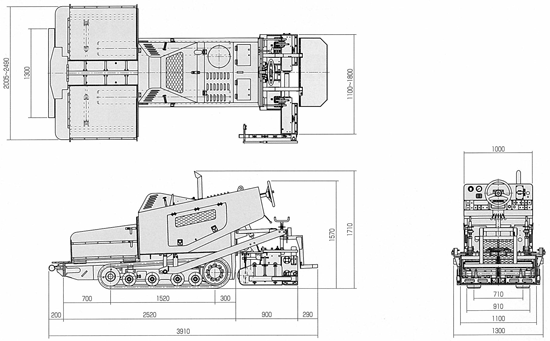

Dimension（L×W×H）	3.910×1.300×1,570mm	3.910×1.300×1,570mm
Paving Thickness	10～80mm
Paving Speed	1～12m/min
Rated Output	18.3kW/1,900min^-1

Crawler Type Mini Asphalt Paver: F14C3&18C3

	Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport(‘97’Version)
	Designated Exhaust Gas Controlled Construction Machine in Second Phase STD. registered to Ministry of Land Infrastructure & Transport
