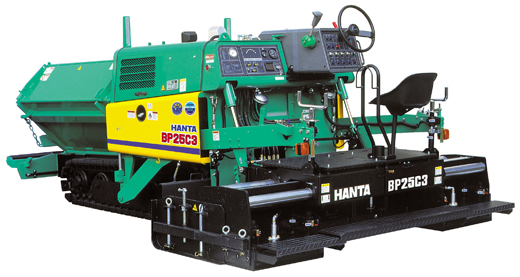

Crawler Type Mini Asphalt Paver： Model BP25C3 |
 |
|
|
 |
| |
|
| Model Designation |
BP25C3 |
| Weight |
Approx. 4,850kg |
| Paving Width |
1.4～2.5m |

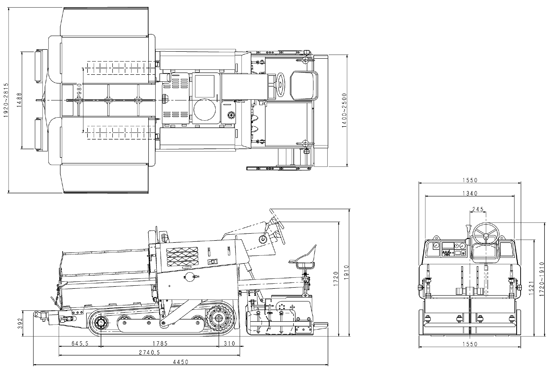

| Dimension（L×W×H） |
4,450（L）×1,550（W）×1,720（H）mm |
| Paving Thickness |
10～150mm |
| Paving Speed |
1～12m/min |
| Rated Output |
25.3kW/1,900min-1[34.4ps/1,900r.p.m] |
|
| |
 |
|
|
| |
 |
Designated Low Noise Level Construction Machine registered
to Ministry of Land Infrastructure &
Transport. (97’Version) |
 |
Conformity vehicle for exhaust gas control standard to designated special vehicles. |
|
